SAFE SKIES = SUSTAINABLE FUTURE

We applied 50 years of experience in advanced fire protection materials and coating to develop the TSO-C203 approved Fire Containment Cover (FCC). It Isolates a cargo fire to a single pallet for 12 hours, providing the fight crew with valuable time to land safely. Our fire and smoke stopping fabric which exceeds the performance standards set by the Federal Aviation Administration (FAA), the European Aviation Safety Agency (EASA), and leading cargo carries. In addition to providing significant risk reduction for cargo transport, F.C.C. is lightweight, durable, and easy to deploy and maintain.

Design features

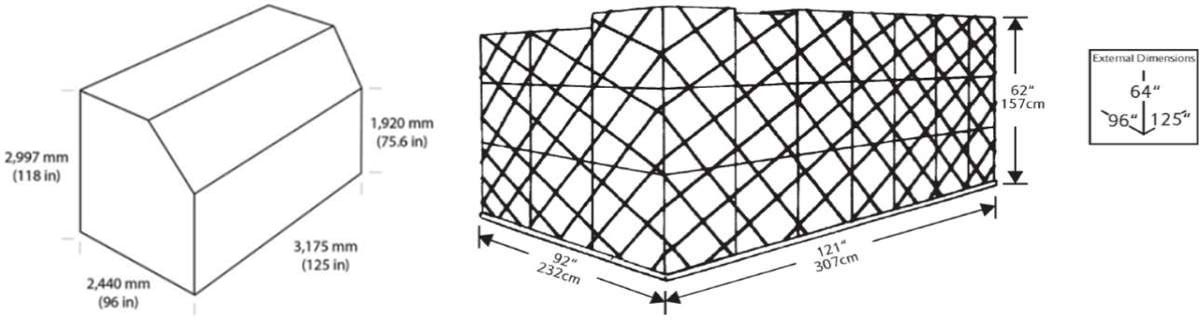

The fire containment cover features a cross-shaped design with overlapping corners for compatibility with irregular loads and for easy deployment and removal. The system is also specifically engineered to fold into a small and manageable rectangle when not in use.

Fabricated from technologically advanced fabric and maximum strength, high temperature threads, these units can withstand even the most extreme conditions. The fabric is a fire and smoke resistant fiberglass material featuring a proprietary silicone overcoat for added durability. Water-tight, puncture resistant, and durable. It provides extended protection from extreme heat and flames caused by challenging fuel sources, like Lithium-lon batteries for up two 12 hours.

System Benefits

• Will not burn, melt, or allow flame penetration
• Resistant to molten metal burn-through
• Withstands temperatures up to 1800°F (980°)
• Will not produce toxic outgassing
• Water tight and chemical resistant
• Will not support growth of mold, fungi or bacteria
• Unaffected by extreme temperature or UV
• Abrasion, puncture, and tear resistant
• Soft and pliable making it easy to handle, fold, and unfold
• Easy conforms to irregular loads, always creating a tight seal
• Easy to store, maintain, clean and repair as needed
• Designed, manufactured, and tested in India to TSO-C203

Testing & Certifications

Our 12 hours fire Containment Cover meets or exceeds the following standards.

Standard	Description
TSO-C203	FAA Fire Containment Cover certification
ISO 14186 / SAE AS 6453	Full Scale Box Burn
ISO 12236	Static Puncture Test
FAR 25 Appendix F Part III	Flame Penetration Resistance
FAR 25 Appendix F Part IV	Heat Release Rate
FAR 25Appendix F Part V	Smoke Density
ASTM D6413	Vertical Flame Resistance
ASTM E-84	Surface Flame Spread and Smoke Density
ASTM F-955	Molten Metal Resistance
ASTM E-119	Furnace Tested
UL 1784	Smoke Penetration
BSS 7239	Non-Toxicity of Products of Combustion
DIN -91489	For fire limitation blankets

Additional Features

• Designed to be used with a standard TSO-C90 certified cargo net
• Locking net connectors
• Folding instructions and a training video available
• Three years warranty period
• Repair contracts 1-3-5 years

Repairs — Warranty — Recycling

We offer a unique full repair service contract

• Identify damage against damage report and pressure wash cover.
• Repair with two patches 12in x 12in inside and outside also cross stitch.
• Print identification repair number and date.
• Print all CAA signs to latest guidance / standards.
• Add corner protectors for added strength.
• A new two years warranty is issued.
• Identification number logged for recycling and replacement at purchase price paid.
• 100% yield replacement to almost new condition.

“Striving to be a yardstick of excellence”

We have you covered

• Purchase contract 1-3-5 years.
• Maintenance contract 1-3-5 years.
• Warranty contract 1-3-5 years.
• Recycling contract 1-3-5 years.
• Offering a yearly discount up to 10%
